Planed new EME antenna for 70 cm
Building new 24 el 70 cm ant for V-pol
About me SM4GGC
Hamradio station
EME slide show
QTC EME 23cm

New project for EME Antenna for 70 cm
My plan for 70 cm in the spring 2025 is to put up 2 more YU1CF 26 el yagis for H-pol and try to make 4 24 el yagis for V-pol.

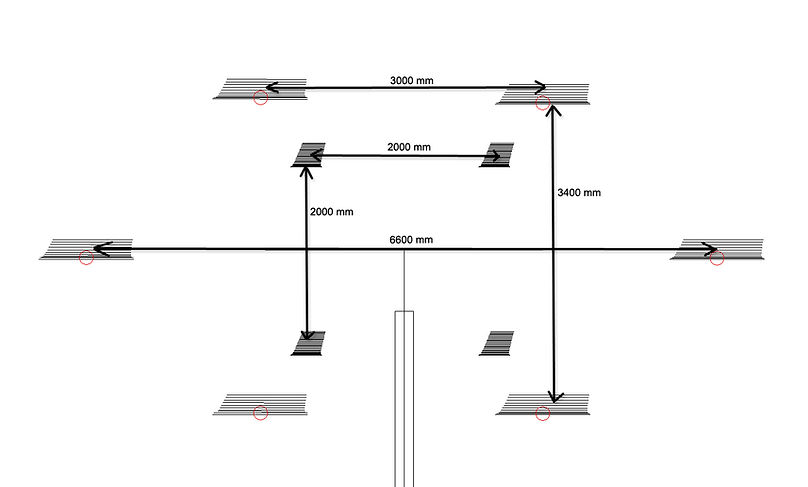

I imagine a configuration like the one in the image beside that will give a favorable radiation pattern for H-pole with strongly suppressed side lobes according to antenna modeling with EZNEC.
More will follow later
H-pol EL radiation pattern. Gain 26,97 dBi. Front/Sidelobe 15,26 dB
.png)
H-pol AZ radiation pattern. Gain 26,97 dBi. Front/Sidelobe 20,82 dB

Building 24 el 70 cm antennas on 6,3 m boom for use in a 4X24 el configuration
The model for the antennas is taken from YU7EF 24 el with 6 mm element diameter in free space.
First did I have to recalculate the length for all elements to 8 mm diameters see simulations made with EZNEC for 8 mm elements and 12 mm dipole



Dismantling 4 old 2 m antennas to use booms, element holders and elements for the 70 cm antennas.
I did first build a smaller antenna to try out the approximate boom correction for this type of element holders with the element placed about 9,5 mm above the 35 mm diameter boom.




VNA measurements on first try out with 16 mm boom correction and the final result with 13 mm boom correction
16 mm element boomcorrection


16
13 mm element boomcorrection
